Burroughs Check Sorter Parts

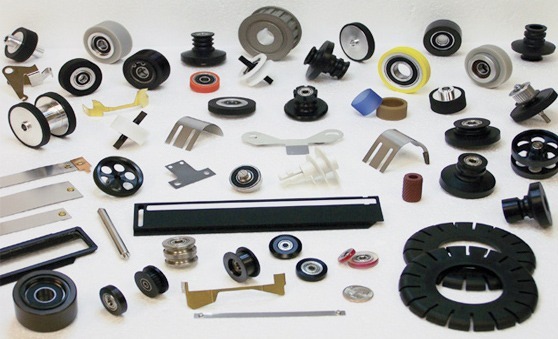

DP Technologies, Inc. provides a wide range of precision replacement parts for Burroughs check processing equipment, including check sorters, encoders, and other systems. Our parts, such as feed rollers, drive rollers, pinch rollers, aligner disks, pulleys, and complete roller assemblies, are used in various sections like the feeder, aligner, high-speed encoder module (HSEM), microfilmer, and stacker pockets. Compatible models include Burroughs Encode100, SourceNDP, DP500, NDP300/575/600, DP800, NDP1150/1825, and NDP2000.

Part Number Part Description
1071 1539** Wheel assembly
1081 3335 Auger gear
1089 3303 Roller only (rubber) – turn-in assembly
1089 3311** Roller only (metal) – turn-in assembly
1089 8435 Auger drive gear
1089 8492** Auger spur gear
1321 2535 Pulley – feeder plate
1321 2535-S Pulley – shaft
1546 3458 Pocket roller
1546 3474 Pocket roller
2105 0182** Throat roller & post assy new
2111 3964 Pulley – feeder plate
2111 3964-S Pulley – shaft
2111 4004 Pulley – feeder plate
2111 4004-S Pulley – shaft
2118 4080 Alignment disk
2489 9023 Roller assembly
2489 9114** Roller assembly – flat
2495 2806 Roller assembly, matrix printer
2709 6148 Idler roller, hspe
2716 4037 Stand-by roller
2716 5042 First accelerator roller
2974 7276** Dynavar tape
3127 0903** Dynavar tape
3127 9474 Platen arm assy, matrix printer
3129 0309-P Non impact endorser pin
3129 4002 Flat belt
3129 9555 Pulley – feeder plate
3129 9555-S Pulley shaft
3136 5125 Poly v pulley
3136 5281** Pocket spring – new style
3142 3536 Drive roller assy – 5 degree
3142 3551 Drive roller assy – 0 degree
3143 2008** Roller assembly – flat
3252 3029** Idler roller, encoder
3265 1002 Platen assembly
3269 7294** Platen arm assy, matrix printer
3270 8810 Shaft, hspe
3270 8828 Arm, right, hspe
3270 8836 Arm, left, hspe
3271 5120** Auger spur gear
3272 4635 Detecting shaft
3272 5657 Roller assy, matrix printer
3272 8834 Timing pulley
3272 8875 Roller assy – crown
3794 7298** Idler roller , encoder
3798 2535 Pulley, reader
3798 3863 Drive roller, feeder
3831 3474-001** Drive roller, feeder
3879 9862-P Pulley, feeder motor
3880 8374 Drive roller, feeder
3881 7904-001 Idler roller, microfilmer
3882 6988 Roller assembly, encoder
3883 5211-001** Motor pulley, microfilmer
3884 5160 Drive roller, feeder
3962 9886 Ribbon guide
3982 7597** Motor pulley, microfilmer
3982 8041 Pulley assembly
3983 0559 Drive roller, feeder
3983 2563 Pulley, reader
3983 4833** Idler roller
3986 2156** O-ring roller assembly
3986 2198 Drive roller, feeder
3986 3071** Drive roller, feeder
3986 4723 Dynavar tape – single height
3986 4731 Dynavar tape – dual height
3986 5894** Wheel assembly
3986 7478 Drive roller, feeder
3987 4433-001 Pulley tensioner assy
3995 0910 Pressure roller assy
3995 1702 Feeder roller
3995 5141-R Idler roller
3995 5141-S Flat spring
3996 1875** Idler roller
4139 1970 Pressure roller shaft
4139 7159 Endorser ribbon shield
4139 7852 Leaf spring, hspe single tab
4146 1450 Knurled roller set, hspe
4146 3282 Enter / exit roller
4146 3795 Feeder shield
4146 8109** Roller & bracket assembly new
Roller only – rubber
Roller only – metal
4146 8117** Throat roller & post assy new
4146 8299** Pocket spring – new style
4147 4867 Head mount assembly
4147 7167-001 Roller / encoder assy
4147 7365-001 Idler assembly, optical encoder
4328 0890-000 Roller assembly
4330 1829-000 Leaf spring, hspe double tab
4332 8301-001 Pinch roller, hsem 1000 dpm
4332 8376 Adjusting mechanism
4333 7682-001 Pinch roller, hsem 600/800 dpm
4335 6149-000 Pressure roller assy
4335 6435-000 Pocket roller assy
4336 1641 Feeder shield – new style
4344 1641 Feeder shield – new style
4344 6723** O-ring roller assembly
Miscellaneous Parts
75-2002-501 Feeder kit
75-2148-908 Feed belt 5/pack
75-2150-904 Separator belt 5/pack
2371 2701 Separator belt (3142 1605)
4344 1634 Separator belt
** Indicates part is also sold under another part number
